$2,799.00 – $2,899.00

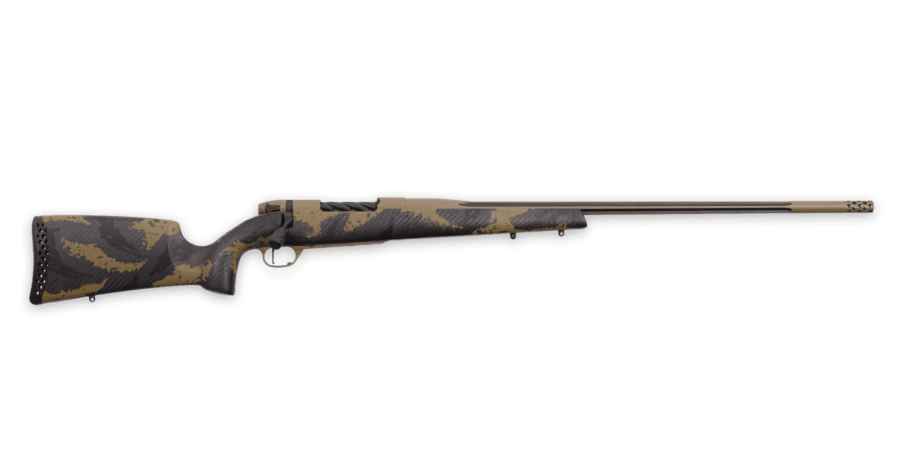

Welcome to the top of the food chain, the Mark V® APEX is where long-range accuracy meets lightweight hunting. The APEX is built on the iconic Weatherby® Mark V® steel action and comes with a fluted two-toned cerakoted barrel.
Fluted Barrel – 2-tone Coyote Tan Cerakote and Graphite Black
Trigger Guard / Receiver – Coyote Tan Cerakote
Bolt / Bolt Knob / Safety – Graphite Black Cerakote
Stock – Exposed Carbon fiber with tan/brown sponge pattern accents
Equipped with Peak 44™’s new Bastion stock, among the lightest production vertical grip carbon fiber stocks on the market, weighing in at just 23 ounces. It features a comfortable ambidextrous palm swell and a substantial thumb groove to promote proper form while shooting. The forend features dual sling studs to allow the shooter multiple options when deciding on accessories. This upgraded stock allows shooters to comfortably and accurately shoot from all positions not only at the range but in the harshest of conditions while in the field.
Also grabbing the eye is the second generation 3DHEX® recoil pad, the first production 3D printed pad the firearms world has seen. Hidden inside the pad is a series of interlocking voids that progressively collapse during recoil, expanding the time component of the recoil impulse and deadening the sharp kick of magnum chamberings. This means less felt recoil resulting in better accuracy downrange.
More pronounced spiral fluting on the bolt body not only trims weight but also reduces the bearing surface within the action and results in smoother bolt function.
Fit with Weatherby’s highly-effective Accubrake® ST, this brake is blended to match the profile of the muzzle. With 30 symmetrically-spaced ports that help harness the recoil, it tames even magnum chamberings.
All Mark V® rifles are guaranteed to shoot a 3-shot group of .99” or less at 100 yards (SUB-MOA) from a cold barrel when used with Weatherby® factory or premium ammunition within Two-Years of Verified Purchase Date to Original Purchaser.
TriggerTech’s trigger provides true zero-creep break, extremely short over-travel, and is externally adjustable. Precision cut stainless steel components ensure consistent trigger pulls from shot to shot in a safe, reliable, and corrosion resistant package.
By adding an Accubrake ST you will significantly reduce felt recoil up to 53%. Available in four different barrel diameters, with thread protector, for a perfect brake-to-barrel contour.
The shortest in the industry (as compared to typical 90 bolt throw). Allows for faster chambering on follow-up shots and greater bolt-to-scope clearance.
A larger radius, deeper flute not only trims a bit more weight from the bolt body of the Mark V, it also increases the smoothness with which the bolt can be cycled.
Allowing for customization and utility, the bolt handle of the Mark V is now threaded to accept a variety of bolt knobs
Sourced from Peak 44, this stock has the distinction of being the lightest production aerospace-grade carbon fiber stock on the market. Industry-leading manufacturing techniques, patented bedding technology and the addition of the 3DHEX recoil-reducing buttpad mean this is one of the most advanced lightweight stocks to date.
Large caliber felt recoil dissipation provided in the lightest recoil reducer available. 3DHEX is a patent pending high strength energy diffusing lattice structure designed to distribute specific directional forces and reduce muzzle lift.
Cerakote is the industry leading thin-film ceramic coating. The Cerakote unique formula enhances physical properties including wear, corrosion, and chemical resistance while improving impact strengths, and hardness.
All Vanguard® rifles are guaranteed to shoot a 3-shot group of .99” or less at 100 yards (SUB-MOA) from a cold barrel when used with Weatherby® factory or premium ammunition within Two-Years of Verified Purchase Date to Original Purchaser.
TriggerTech’s trigger provides true zero-creep break, extremely short over-travel, and is externally adjustable. Precision cut stainless steel components ensure consistent trigger pulls from shot to shot in a safe, reliable, and corrosion resistant package.
The shortest in the industry (as compared to typical 90 bolt throw). Allows for faster chambering on follow-up shots and greater bolt-to-scope clearance.
By adding an Accubrake ST you will significantly reduce felt recoil up to 53%. Available in four different barrel diameters, with thread protector, for a perfect brake-to-barrel contour.
A larger radius, deeper flute not only trims a bit more weight from the bolt body of the Mark V, it also increases the smoothness with which the bolt can be cycled.
Allowing for customization and utility, the bolt handle of the Mark V is now threaded to accept a variety of bolt knobs.
Sourced from Peak 44, this stock has the distinction of being the lightest production aerospace-grade carbon fiber stock on the market. Industry-leading manufacturing techniques, patented bedding technology and the addition of the 3DHEX recoil-reducing buttpad mean this is one of the most advanced lightweight stocks to date.
Large caliber felt recoil dissipation provided in the lightest recoil reducer available. 3DHEX is a patent pending high strength energy diffusing lattice structure designed to distribute specific directional forces and reduce muzzle lift.
Cerakote is the industry leading thin-film ceramic coating. The Cerakote unique formula enhances physical properties including wear, corrosion, and chemical resistance while improving impact strengths, and hardness.
*As of 01/01/2024 the twist rate for .240 WBY MAG and .243 WIN was updated from 1:10 to 1:7.5
Technical information on each Apex chambering
| Caliber | Weight | Overall Length | Mag capacity | Barrel Contour | Barrel Threads | Barrel OAL | Twist Rate | Length of Pull | Drop @ Comb | Monte Carlo | Drop @ Heel |
|---|---|---|---|---|---|---|---|---|---|---|---|
| .240 WBY MAG | 6.5lbs. | 46“ | 4+1 | #3 | 5/8-24 | 26" (24" barrel + 2" muzzle brake) | 1:7.5“ | 13.25“ | .49“ | N/A | .35“ |
| .257 WBY MAG | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .270 WBY MAG | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| 28 NOSLER | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:9“ | 13.25“ | .49“ | N/A | .35“ |
| .30-378 WBY MAG | 7.5lbs. | 48“ | 2+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .300 PRC | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .300 WBY MAG | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .300 WIN | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .308 WIN | 6.4lbs. | 44“ | 4+1 | #3 | 5/8-24 | 24" (22" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .338 WBY RPM | 6.5lbs. | 46“ | 4+1 | #3 | 5/8-24 | 26" (24" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| .338-378 WBY MAG | 7.5lbs. | 48“ | 2+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:10“ | 13.25“ | .49“ | N/A | .35“ |
| 6.5 CREEDMOOR | 6.5lbs. | 46“ | 4+1 | #3 | 5/8-24 | 26" (24" barrel + 2" muzzle brake) | 1:8“ | 13.25“ | .49“ | N/A | .35“ |
| 6.5 WBY RPM | 6.5lbs. | 46“ | 4+1 | #3 | 5/8-24 | 26" (24" barrel + 2" muzzle brake) | 1:8“ | 13.25“ | .49“ | N/A | .35“ |
| 6.5-300 WBY MAG | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:8“ | 13.25“ | .49“ | N/A | .35“ |
| 7MM PRC | 7.5lbs. | 48“ | 3+1 | #3 | 5/8-24 | 28" (26" barrel + 2" muzzle brake) | 1:8“ | 13.25“ | .49“ | N/A | .35“ |
Technical information on each Apex chambering
Starting at just 5.2 lbs the Mark V® Backcountry™ 2.0 was purpose-built to be the best lightweight mountain rifle on the market. It features Peak 44™’s Blacktooth™ carbon fiber stock which weighs only 19oz making it one of the lightest production stocks on the market. Equipped with an Accubrake® ST and 3D Hex Recoil pad, the Backcountry 2.0 series manages recoil extremely well even with Weatherby’s historic magnum cartridges. This is the rifle you want 10 miles from the truck and you have to make the shot count.
Fluted Barrel / Trigger Guard / Receiver – Patriot Brown Cerakote
Bolt / Bolt Knob / Safety – Graphite Black Cerakote
Stock – Peak 44 Blacktooth Carbon fiber with dark green and brown sponge pattern accents
Starting at just 4.7 lbs the Mark V® Backcountry™ Ti was purpose-built to be the best lightweight mountain rifle on the market. It features Peak 44’s Blacktooth carbon fiber stock which weighs only 19oz making it one of the lightest production stocks on the market. Equipped with an Accubrake® ST and 3D Hex Recoil pad, the Backcountry 2.0 series manages recoil extremely well even with Weatherby’s historic magnum cartridges. The titanium action has an incredible strength-to-weight ratio cutting even more weight than the standard steel action. When ounces and accuracy matter grab the Backcountry Ti.
Fluted Barrel / Trigger Guard / Bolt / Bolt Knob / Safety – Graphite Black Cerakote
Stock – Peak 44 Blacktooth carbon fiber stock with Grey and White sponge pattern accents
Expanding on the ground-breaking Backcountry™, the Backcountry 2.0 Ti Carbon combines our incredibly popular tensioned carbon fiber barrel with the supremely lightweight and strong titanium Weatherby® Mark V® action.
Carbon Barrel / Trigger Guard / Bolt / Bolt Knob / Safety – Graphite Black Cerakote
Stock – Peak 44™ Blacktooth™ carbon fiber stock with Grey and White sponge pattern accents
